Build Your Ultimate Lifting Station

The Riot Modular Rack Range is your gateway to a personalized training experience in powerlifting and strength sports. The 75mm x 75mm sturdy base components are perfect for commercial gyms or your own private dungeon. With a selection of separate components like uprights, crossbeams, spotter arms, various pull-up solutions and many more, you can create a training station that aligns perfectly with your strength training ambitions.

→ Select the base height of your cage here. You can choose from four different variants of posts/uprights that determine the height of your cage. In addition to heights of 2.3 and 2.1 metres, you can also put together a variant for low ceilings with the garage posts or build a semi-open variant.

Specs

Material: 75mm x 75mm square tube, 3mm wall thickness
Finish: black powder-coated
Compatibility: only with Riot and Rig series
Laser-cut numbering on the front and back
17mm pinholes, 50mm centre-to-centre spacing.
2300 and 2100 uprights: 25mm centre-to-centre 'Westside' spacing holes 7-36 (418-1865mm from floor)
Garage und Open upright: 25mm centre-to-centre spacing for 'Westside' hole pattern 7- 23 (418-1218mm from the floor). Front and back only.
Sold as a pair

Details of the footplate:

105mm x 135mm x 8mm – offset to maximize open space in the rack
3x 10mm holes for floor mounting

Dimensions of individual posts (HxWxD / mm):

2.3m: 2300 x 105 x 135
2.1m: 2100 x 105 x 135
Garage: 1800 x 105 x 135
Open Upright: 1250 x 105 x 135

📄 Download Instructions Standard Racks (PDF)
📄 Download Instructions Half Racks (PDF)

RIOT MRR I COMPONENTS

Riot MRR 75 | Uprights

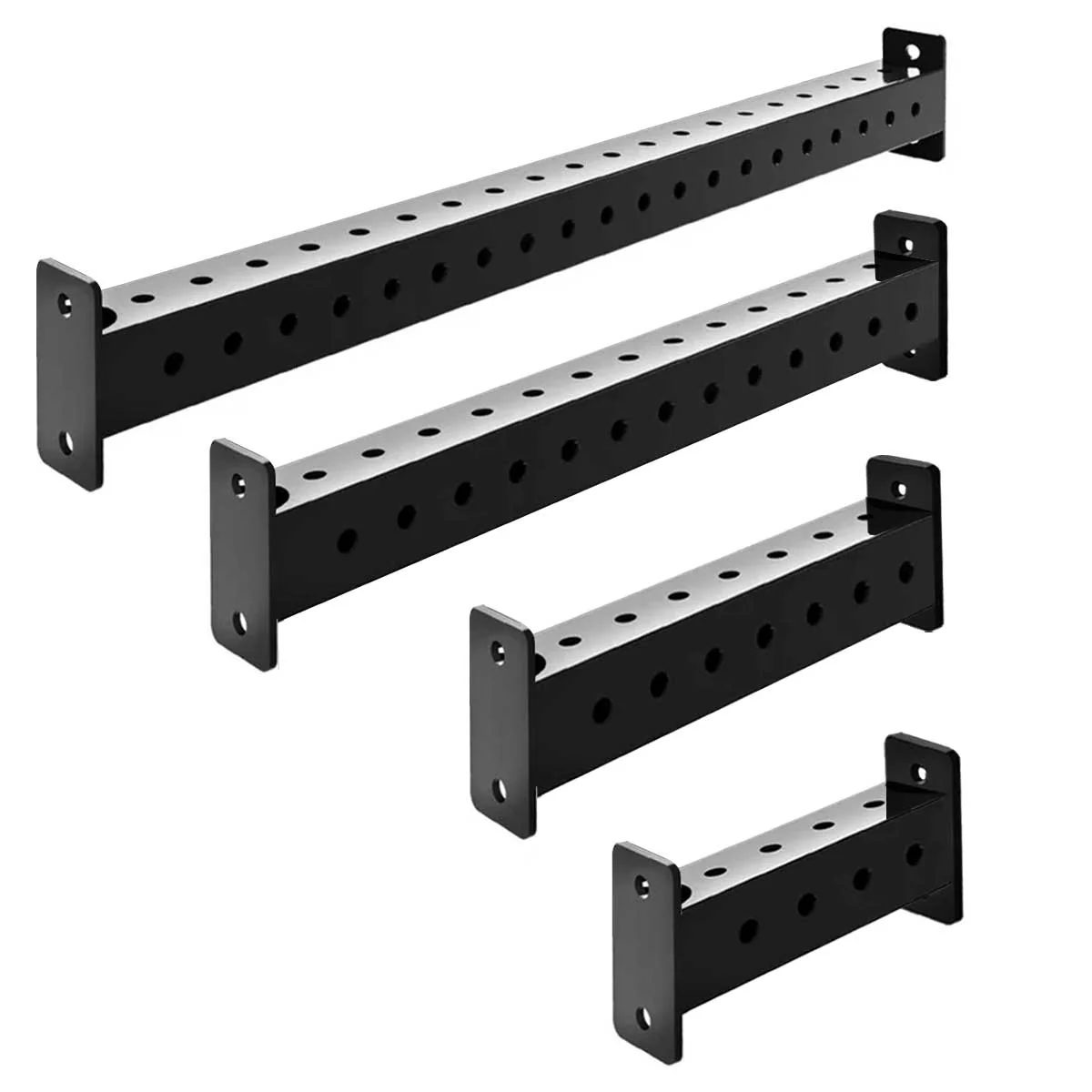

Riot MRR 75 | Crossmembers

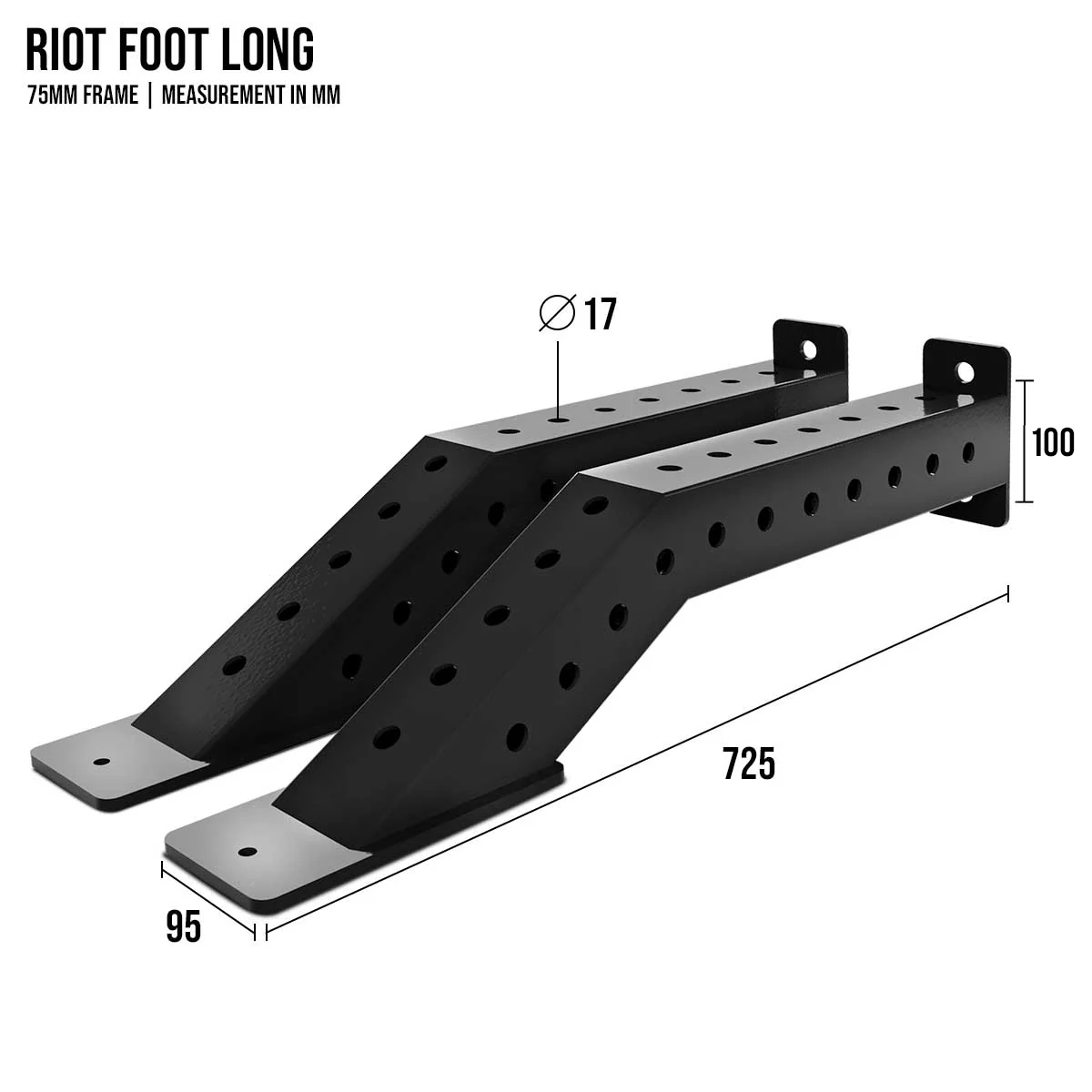

Riot MRR 75 | Feet

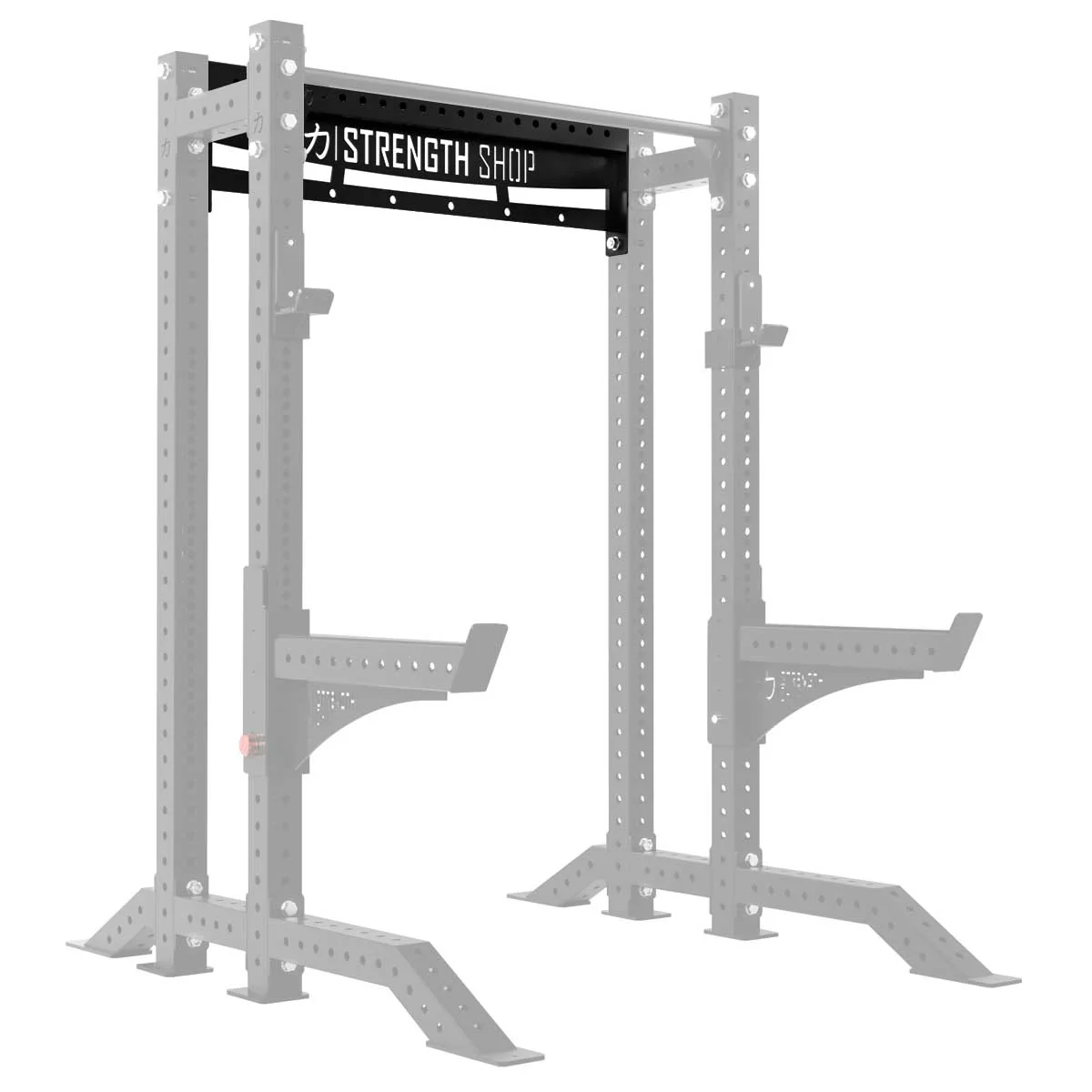

Riot MRR 75 | Nameplate Crossmember

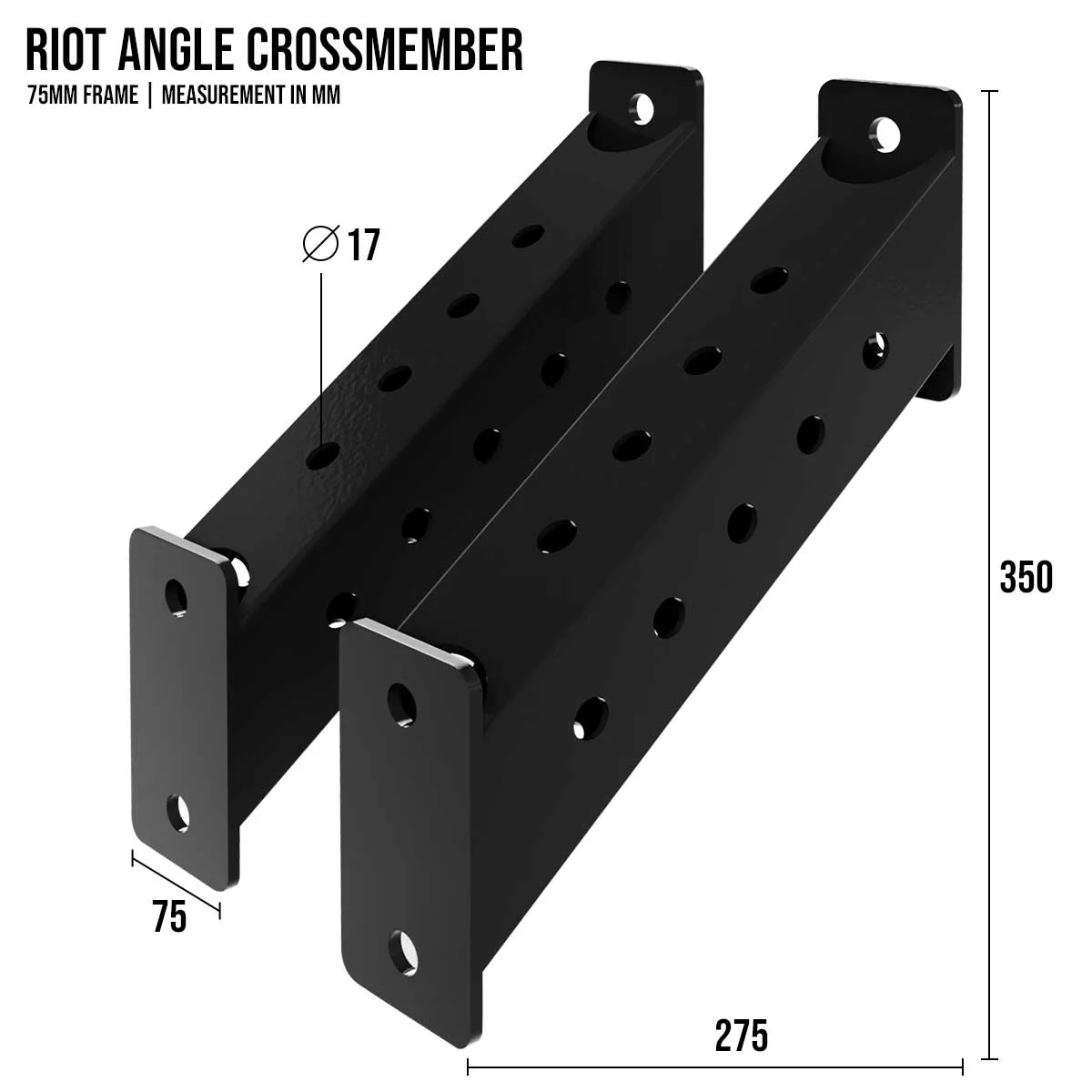

Riot MRR 75 | Angled Crossmember

Riot MRR 75 | 1075 Branded Crossmember
